BASIC FITTING

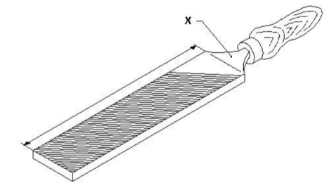

Name the part of file marked as x

Heel Tang Ferrule File length

What is the use of a try square? To check straight angle To check obtuse angle To check acute angle To check right angle

Which marking media is poisonous? White wash Prussian blue Copper sulphate Cellulose lacquer

Which part of universal surface gauge holds the scriber? Guide pin Snug Rocker arm Fine adjustment screw

A new hacksaw blade after a few stroke, becomes loose because of? stretching of blade wrong pitch of the blade improper selection of saw sets nut thread being worn out

Why breakage of teeth occur easily while sawing of thin walled work pieces and the start of cut? Hand force is too big Cutting section is too short Coarse blade to be used Hand force acts only upon few teeth

Which chisel used for squaring materials at the corners, joints? Flat chisel Cross cut chisel Diamond point chisel Half round nose chisels

Name the part of a hammer marked as x.

Face Cheek Pein Eye hole

Name the property of metal which can be drawn into wires without rupture. Ductility Tenacity Elasticity Malleability

What is the spindle movement of one division of thimble with spindle thread of 0.5 mm pitch? 0.01 mm 0.10 mm 1.00 mm 10. 0mm

What operation is carried out in a gang drilling machine? Idle operation Repeated operation of drilling Continuous milling operation Successive operation of drilling

Which is an integral part of the stock in Vernier bevel protractor? Disc Dial Blade Main scale

Name the part marked as x of the file.

Heel Edge Ferrule Shoulder

Which file is used to make the job close to the finishing size? Single cut file Curved cut file Double cut file Second cut file

Which file has the parallel edges throughout the length? Hand file Bastard file Rasp cut file Single cut file

What is the material to manufacture bench vice? Tool steel High carbon steel Medium carbon steel Cast iron

Which marking media provide clear lines on machine finished surfaces? White wash Prussian blue Copper sulphate Cellulose lacquer

What is the purpose of slots provided in the slotted angle plate? Job clamping Easy handling Reduce weight Better appearance

Which caliper is used to mark the centre of round bar? Jenny caliper Inside caliper Outside caliper Firm joint caliper

Name the angular measuring instrument. Bevel gauge Bevel protractor Universal bevel gauge Universal surface gauge

Which is used for filling narrow grooves and angles above 10°? Square file Half round file Triangular file Knife edge file

Name the defect that causes the metal chips to clog between the teeth of file? File bite Pinning of file Warping of file Glazing of file

Which chisel is used for cutting oil grooves? Flat chisel Web chisel Half round nose chisel Diamond point chisel

Name the file.

Barrot file Riffler file Crossing file Mill saw file

What is the name of vice?

Pipe vice Hand vice Pin vice Machine vice

Which grinding machine is used for heavy duty work? Bench grinder Portable grinder Pedestal grinder Surface grinder

Which chisel is used for separating materials after chain drilling? Web chisel Flat chisel Cross cut chisel Diamond point chisel

Which file is used for sharpening the teeth of woodworking saws? Barrette file Tinker's file Mill Saw file Riffler file

Where will be the weight of the hammer stamped? Face Pein Eye hole Cheek

What will be the effect if the clearance angle of chisel is less than recommended angle while chipping? Cutting edge cannot penetrate, chisel will slip Cutting edge digs in, cut will be deeper Cutting edge will break Cutting edge of chisel move freely on straight line

Name the property of metal to resist the effect of tensile forces without rupture. Ductility Tenacity Elasticity Malleability

What is the accuracy of metric outside micrometer? 0.01 mm 0.001 mm 0.02 mm 0.002 mm

Which type of taper is provided in the drill shank? Pin taper Metric taper Morse taper Jerno taper

Which is used to remove drills and sockets from the machine spindle? Drift Sleeve Punch Hammer

Name the tap wrench used in the restricted place. Box type tap wrench T handle tap wrench Solid type tap wrench Double ended adjustable tap wrench

In the ISO metric thread, calculate the tap drill size for M 10 x 1.5 thread. 8.2 mm 8.7 mm 8.75 mm 8.65 mm

What is the unit of feed in drilling operation? m/rev mm/rev m/min mm/min

What is the accuracy of protractor head in combination set? 1° 5° 5’ 5’’

What is the accuracy of a try square? 0.02 mm per 10 mm length 0.004 mm per 10 mm length 0.002 mm per 10 mm length 0.001 mm per 10 mm length

Which punch is used for witness marks? Dot punch Pin punch Bell punch Centre punch
