DRILL JIG

Which type of jig do not have base plate? Table jig Plate jig Template jig Template

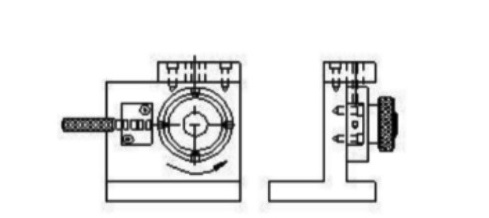

What is the name of jig?

Leaf jig Solid jig Angle plate jig None of the above

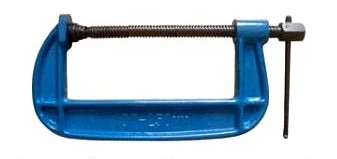

What is the name of clamp?

Strap clamp Cam clamp Latch clamp None of the above

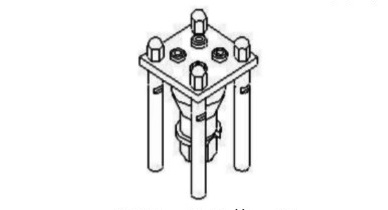

What is the name of jig?

Box jig Post jig Turn over jig Sandwich jig

Which type of bush is used in jig to perform more than one operation in same location? Slip bush Plain bush Fixed bush Liner bush

What is the purpose of grooves provided in the c Channel jig 'V' blocks?| Reduce the weight Support the work piece Accommodate the clamp Allow thermal expansion

Which is the important factor to determine the construction of fixture? Machining method Location and clamping Tool guiding and frame Size of work piece and tool

Why the balancing weight is provided in the turning fixture? To guide tool To balance the tool To balance worktable To balance irregular workpiece

What is the purpose of setting blocks used in the fixture? Position the balancing weight Position the clamp and locators Position the fixture on machine table Position the fixture and work related to cutter

Which type of fixture is used for machining on evenly spaced surfaces? Plate fixture Vice jaw fixture Indexing fixture Angle plate fixture

Which type of jig is used for awkwardly shaped work piece to drill at different angles? Post jig Trunnion jig Indexing jig Solid jig

Which device holds, supports, locates and also guide the cutting tool for operation? Jig Fixture Chuck Machine vice

What is the name of clamp used in jig?

Tooth clamp Latch clamp Toggle clamp Wedge clamp

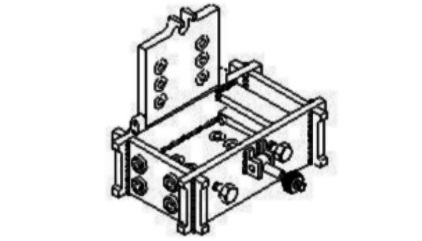

What is the name of jig?

Box jig Drill jig Post jig Leaf jig

Why two or four hold down slots are provided in the base plate of milling fixture? For rigid clamping For guiding the tool For locating workpiece For adjusting the job setting

Which bush is used to provide a hardened hole for renewable bushes? Slip bush Plain bush Fixed bush Liner bush

Which part restrict incorrect loading of component in jig? Clamp Guide plate Locating pin Press fit bush

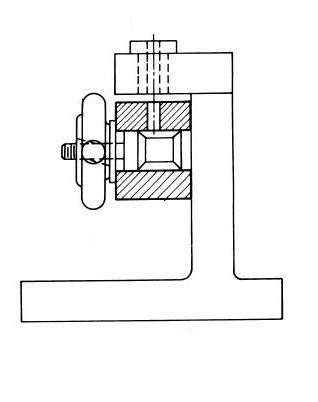

What is the type of jig?

Post jig Plate jig Indexing jig Angle plate jig

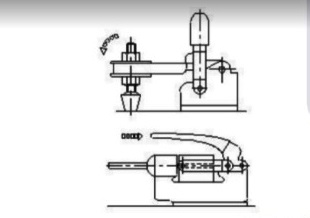

What is the name of clamp?

Cam clamp Screw clamp Wedge clamp Toggle clamp

Why tenons are provided at the bottom of base plate of milling fixture? For guiding the tool For clamping purpose For balancing workpiece For proper location of fixture

Which device is used to hold, locate and not guide the cutting tool during machining operation? Jig Fixture C-clamp Machine vice

Which type of fixture provides an easy method of holding parts for machining? Turning fixture Vice fixture Milling fixture Grinding fixture
